POWERING YOUR ROOFTOP REVOLUTION WITH SOLIS S6 3KW INVERTER
Maximum String Input Current 14A
Easy Installation: Integrate with export power control function and DRM function.
Max. Efficiency Over 97.3%
Wide Input Voltage Range for Better Generation and Low Startup
Dual MPPT Design with Precise MPPT Algorithm
Export Limitation Built-in – Requires CT Clamp (Sold Separately)
Integrated AFCI (DC Arc-Fault Circuit Protection)
Rated IP66
10-Year Warranty (5-Year Standard Warranty + 5-Year Free of Charge Warranty Extension)
Features:

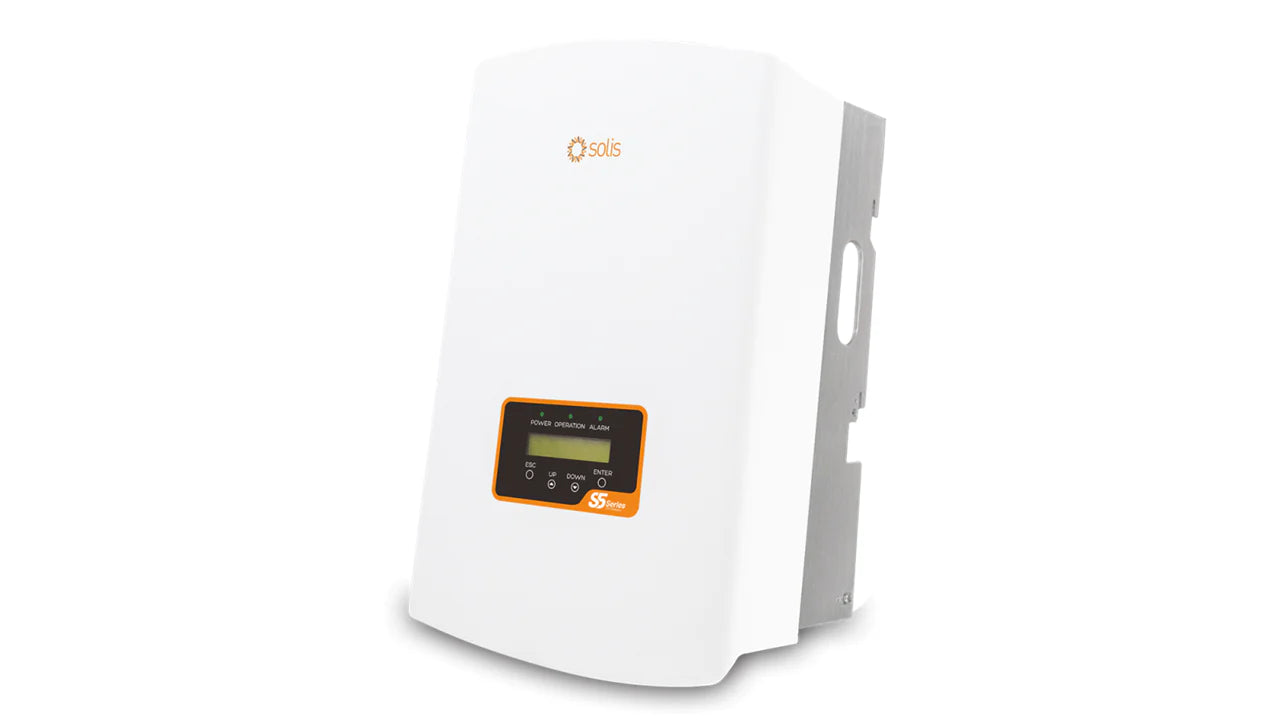

The Solis S6 3kW S6-GR1P3K Grid-tie Inverter stands at the forefront of grid-tied residential inverters, defining excellence for affordable small residential rooftop installations.
The Solis S6 3kW S6-GR1P3K Grid-tie Inverter is tailor-made for green energy applications in small residential and commercial rooftops. Adopting full digital control technology, advanced topological structure, and accurate dual MPPT algorithms, its efficiency surpasses the industry-leading conversion, reaching a maximum of 97.3%.
Additional Features:
Integrated DC Switch Version: No need for an external DC Isolator. If you already have one, it’s not an issue; you can simply disable one of them!
For monitoring, enhance your system with a Solis Wi-Fi data logging stick.
Enjoy peace of mind with a 5-year warranty as standard, extendable to 10 years with a Warranty Extension +5 Years.
The Solis S6 3kW S6-GR1P3K Grid-tie Inverter operates with remarkable efficiency, maximizing the conversion of solar energy into usable electricity. Advanced dual MPPT technologies ensure optimal performance even in challenging weather conditions such as dusk or partial shade.
Delivery: 2-3 WORKING DAYS within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland).
Solis S6—empowering your solar journey.
Detailed specifications:
Model: S6-GR1P3K
INPUT PV
Max. Input Power: 4500W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current: 14A/14A
Max. Short-circuit Current: 22A/22A
No. of Independent MPP Trackers: 2
AC OUTPUT (GRID)
Rated Output Power: 3000W
Max. Output Power: 3300W
Max. Output Apparent Power: 3300VA
Rated Grid Output Current: 13.6A / 13.0A
Max. Grid Output Current: 15.7A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
THD: <3%
EFFICIENCY
Max. Efficiency: 97.3%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP66
Size: 310 x 160 x 543mm
Net Weight: 11.2kg
In the Box:
1 X Solis S6 3kW S6-GR1P3K Grid-tie Inverter,
1 X Solis S6 3kW S6-GR1P3K Grid-tie Inverter User's Manual.
Documents available for download:
Solis 3kW Grid-tie Inverter S6-GR1P3K Data Sheet
Solis 3kW Grid-tie Inverter S6-GR1P3K Installation Manual
