ELEVATE YOUR SOLAR EXPERIENCE WITH SOLIS S6 5KW INVERTER
Max PV Power of 7500W
Maximum String Input Current 14A
DRM (Demand Response Mode) Integrated and Backflow Power Control Function for Smart Grid Requirements
Super High-Frequency Switching Technology with Max. Efficiency Over 97.7%
Dual MPPT Design with Precise MPPT Algorithm
Export Limitation Built-in – Requires CT Clamp (Sold Separately)
Integrated AFCI (DC Arc-Fault Circuit Protection)
Integrated DC Switch for Safe PV Maintenance
Rated IP66
5-Year Standard Warranty, Extendable to 10 or 20 Years!
Features:

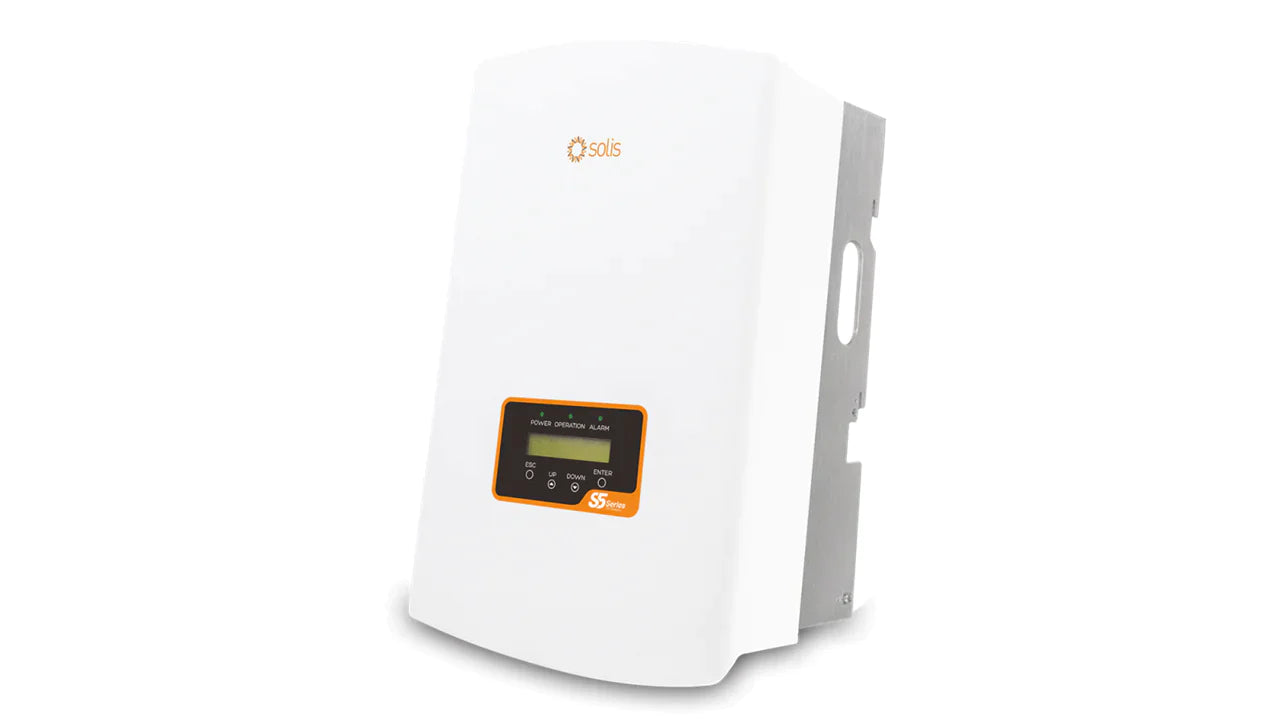

Discover the pinnacle of solar technology with the Solis S6 5kW S6-GR1P5K Grid-tie Inverter, the latest innovation in grid-tied residential inverters from Solis. Tailored for affordability and excellence, this inverter stands out for small residential and commercial rooftop installations. Experience the solar solution you’ve always desired.
The Solis S6 5kW S6-GR1P5K Grid-tie Inverter is suitable for green energy in small residential and commercial rooftops, the inverter adopts full digital control technology, an advanced topological structure, and accurate dual MPPT algorithms, achieving efficiency higher than the industry-leading conversion, reaching a maximum of 97.7%.
Additional Features:
Integrated DC Switch Version: No need for an external DC Isolator. If you already have one, it’s not an issue; you can simply disable one of them!
For monitoring, enhance your system with a Solis Wi-Fi data logging stick.
Enjoy peace of mind with a 5-year warranty as standard, extendable to 10 or 20 years.
The Solis S6 5kW S6-GR1P5K Grid-tie Inverter operates with exceptional efficiency, maximizing the conversion of solar energy into usable electricity. Advanced dual MPPT technologies ensure optimal performance even in challenging weather conditions such as dusk or partial shade.
Delivery: 2-3 WORKING DAYS within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland).
Elevate your solar experience with Solis S6 5kW Inverter!
Detailed Specifications:
Model: S6-GR1P5K
INPUT PV
Max. Input Power: 7500W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current: 14A/14A
Max. Short-circuit Current: 22A/22A
No. of Independent MPP Trackers: 2
AC OUTPUT (GRID)
Rated Output Power: 5000W
Max. Output Power: 5500W
Max. Output Apparent Power: 5500VA
Rated Grid Output Current: 22.7A / 21.7A
Max. Grid Output Current: 25.0A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
THD: <3%
EFFICIENCY
Max. Efficiency: 97.7%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP66
Size: 310 x 160 x 543mm
Net Weight: 12kg
In the Box:
1 X Solis S6 5kW S6-GR1P5K Grid-tie Inverter,
1 X Solis S6 5kW S6-GR1P5K Grid-tie Inverter User's Manual.
Documents available for download:
Solis 5kW Grid-tie Inverter S6-GR1P5K Data Sheet
Solis 5kW Grid-tie Inverter S6-GR1P5K Installation Manual
