UNLEASH MAXIMUM SOLAR POWER WITH SOLIS S6 6KW INVERTER
Max PV Power of 9000W
Maximum String Input Current 14A
DRM (Demand Response Mode) Integrated and Backflow Power Control Function for Smart Grid Requirements
Super High-Frequency Switching Technology with Max. Efficiency Over 97.7%
Dual MPPT Design with Precise MPPT Algorithm
Export Limitation Built-in – Requires CT Clamp (Sold Separately)
Integrated AFCI (DC Arc-Fault Circuit Protection)
Integrated DC Switch for Safe PV Maintenance
Rated IP66
5-Year Standard Warranty, Extendable to 10 or 20 Years!
Features:

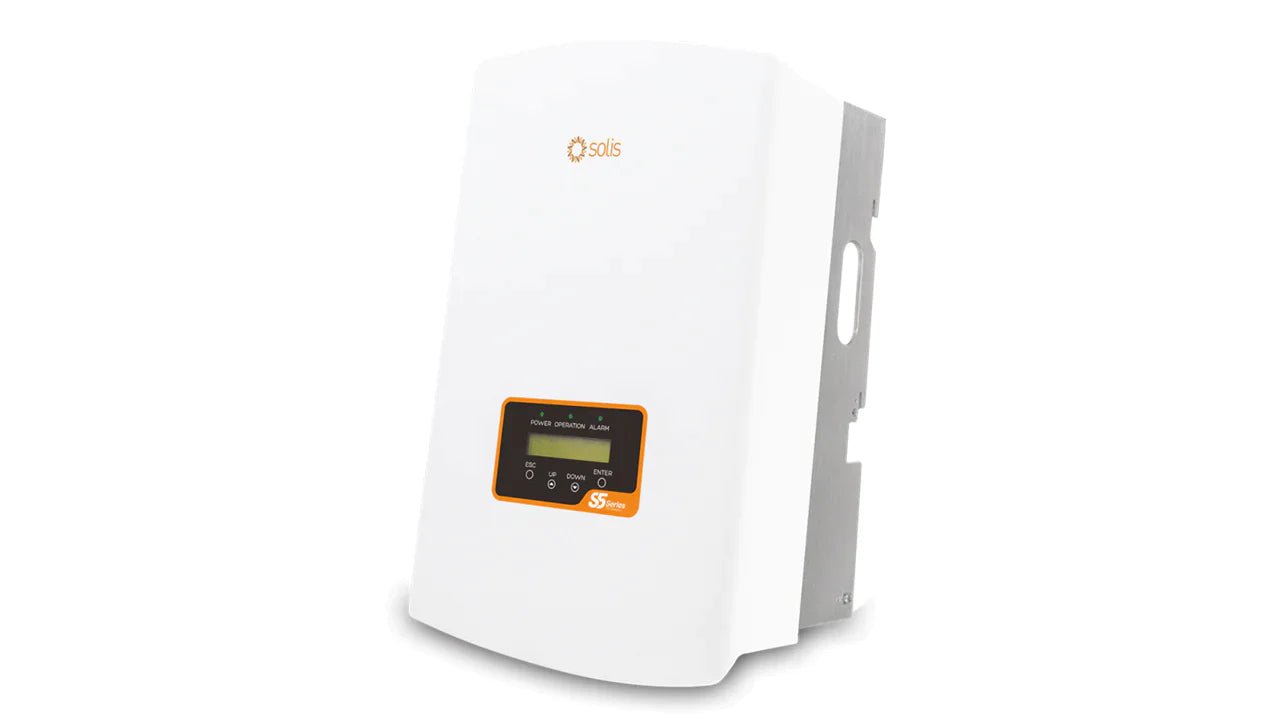

Elevate your solar power experience with the Solis S6 6kW S6-GR1P6K Grid-tie Inverter, the pinnacle of grid-tied residential inverters from Solis. Designed for affordability and excellence, the S6 dual MPPT inverter leads the way in small residential rooftop installations. Explore the ideal solution for all your green energy needs.
The Solis S6 6kW S6-GR1P6K Grid-tie Inverter is suitable for green energy in small residential and commercial rooftops, this inverter adopts full digital control technology, an advanced topological structure, and accurate dual MPPT algorithms, achieving efficiency higher than the in dustry-leading conversion, reaching a maximum of 97.7%.
Additional Features:
Integrated DC Switch Version: No need for an external DC Isolator. If you already have one, it’s not an issue; you can simply disable one of them!
For monitoring, enhance your system with a Solis Wi-Fi data logging stick.
Enjoy peace of mind with a 5-year warranty as standard, extendable to 10 or 20 years.
The Solis S6 6kW S6-GR1P6K Grid-tie Inverter operates with exceptional efficiency, maximizing the conversion of solar energy into usable electricity. Advanced dual MPPT technologies ensure optimal performance even in challenging weather conditions such as dusk or partial shade.
Delivery: 2-3 WORKING DAYS within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland). Unleash the full potential of solar power with Solis S6 6kW Inverter!
Detailed specifications:
Model: S6-GR1P6K
INPUT PV
Max. Input Power: 9000W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current: 14A/14A
Max. Short-circuit Current: 22A/22A
No. of Independent MPP Trackers: 2
AC OUTPUT (GRID)
Rated Output Power: 6000W
Max. Output Power: 6000W
Max. Output Apparent Power: 6000VA
Rated Grid Output Current: 27.3A
Max. Grid Output Current: 27.3A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
THD: <3%
EFFICIENCY
Max. Efficiency: 97.7%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP66
Size: 310 x 160 x 543mm
Net Weight: 12kg
In the Box:
1 X Solis S6 6kW S6-GR1P6K Grid-tie Inverter,
1 X Solis S6 6kW S6-GR1P6K Grid-tie Inverter User's Manual.
Documents available for download:
Solis 6kW Grid-tie Inverter S6-GR1P6K Data Sheet
Solis 6kW Grid-tie Inverter S6-GR1P6K Installation Manual
