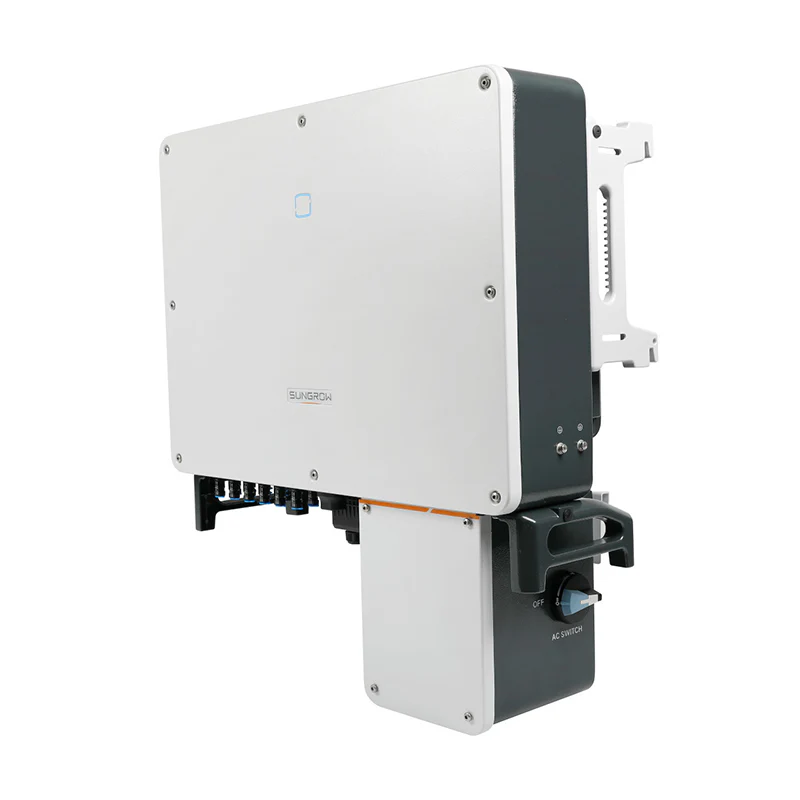

Have 3 “Sungrow 60 KVA 1000VDC 480VAC 6MPPT 3 Phase PV String Inverter – SG60CX-US” inverters from a job that fell through. All 3 are unopened in original packaging, pallet-ed and ready to ship or pickup if you are local. Please keep in mind these are intended for commercial applications.
These currently sell for $8,600 each before taxes and shipping. Asking $8500 USD each obo. prefer to sell all 3 together.
Located in lower central Tennessee northern Alabama.
Pictures and documentation available upon request.
All proof of purchase documentation can be provided so that any factories warranties can be obtained.
Specifications (per Sungrow datasheet)​
Input (DC)
Output (AC)
Efficiency
Protection & Safety
General Data
Max. PV input voltage 1000 V
Min. / Start-up input voltage 200 V / 250 V
Nominal PV input voltage 710 V
MPP voltage range 200–1000 V
No. of independent MPPTs 6
No. of PV strings per MPPT 2
Max. PV input current 26 A × 6
Max. PV short-circuit current per MPPT 45 A
AC output power 60 kVA @ 113 °F (45 °C) / 50 kVA @ 122 °F (50 °C)
Max. AC output current 72.2 A
Nominal AC voltage 3/N/PE, 277/480 V
AC voltage range 422–528 V
Nominal grid frequency / range 60 Hz / 55–65 Hz
Harmonic (THD) 113 °F derating)
Relative humidity 0% – 100%
Cooling method Smart forced air cooling
Max. operating altitude 4000 m (derate > 3000 m)
Display LED, Bluetooth + APP
Communication RS485; optional: Wi-Fi, Ethernet
Third-party protocol SunSpec Modbus
Manufacturers specs can be found here:
www.portlandiaelectric.supply
Sungrow 60 KVA 1000VDC 480VAC 6MPPT 3 Phase PV String Inverter – SG60CX-US
60kW 3-Phase String Inverter, 480 Vac, 1000 Vdc, 6 MPPT, NEMA 4X (IP66), CEC 98.0% — Sungrow SG60CX-US The Sungrow 60 KVA 1000VDC 480VAC 6MPPT 3 Phase PV String Inverter – SG60CX-US is a top-tier s…
