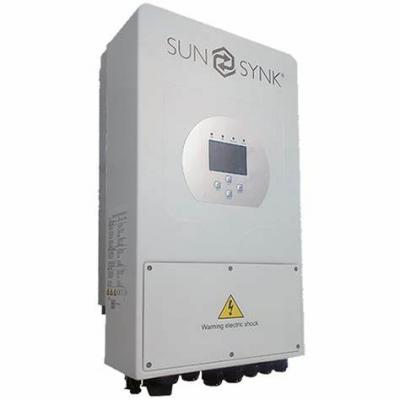

POWER FLEXIBILITY WITH SUNSYNK ECCO 3.6KW HYBRID INVERTER
Reduce your electricity costs by efficiently managing power from diverse energy sources, such as solar panels, batteries, the national electricity grid, generators, or wind turbines. The Sunsynk ECCO 3.6kW Hybrid Inverter is your ideal solution for both home and business, offering scalability to expand as needed.
Start with UPS backup power (with batteries and inverter only) and add panels later.
Begin with Grid-tied (with panels and inverter only) and add batteries later.
Install a complete Hybrid system, including batteries and solar panels, which can be expanded.
Go totally off the grid with a completely independent system.
Key Features
The SunSynk ECCO 3.6kW Hybrid Inverter stands out for its ability to charge and generate simultaneously. Connect up to 7000W of PV to a single unit, allowing the device to export 3.6kW while using surplus power to charge batteries—enabling power generation and charging concurrently.
Multiple operating modes include Grid-tie only, Hybrid, Off-grid, Battery only, and AC couple for the addition of PV input to existing grid-tie solar systems.
Additional features:
Dual MPPT design
5-year warranty as standard
IP65 rated
Anti-islanding protection
Fully programmable power export
Automatic switching from Grid-Tied to Off-Grid mode
Up to 16 units with the same firmware can be paralleled
Comes with Wi-Fi logger and CT
The SunSynk ECCO 3.6kW Hybrid Inverter is compatible with various battery systems, such as Sunsynk CATL 5.12-25.6kWh, PYLONTECH Force-L2 Low Voltage 7.1-14.2kWh, US2000С 2.4-38.4kWh, US3000С 3.55-56.8kWh, US5000 4.8-76.8kWh.
Integrated with Octopus Agile, the Sunsynk ECCO 3.6kW Hybrid Inverter allows you to leverage flexible energy rates. Monitor and control your inverter through the Sunsynk App, available on the Apple App Store or Google Play Store.
Fast Delivery Across the UK: Experience the benefits of the Sunsynk ECCO 3.6kW Hybrid Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
Model: SUN-3.6K-SG01LP1-EU
BATTERY
Battery Type: Lithium-Ion / AGM Lead-acid
Battery Voltage: 40-60V
Max. Charge/Discharge Current: 90A
INPUT PV
Max. Input Power: 7000W
PV Input Voltage: 370V (125V~500V)
Start-up Input Voltage: 125V
Full Load DC Voltage Range: 300-425V
MPPT Operating Voltage Range: 150-425V
PV Input Current: 13A/13A
Max. Short-circuit Current: 17A/17A
No. of Independent MPP Trackers: 2
No. of Strings Per MPPT: 1+1
AC OUTPUT
Rated AC Output and UPS Power: 3600W
Max. AC Power: 3680W
Peak Power (Off-grid): 2 times of rated power, 10sec
Rated Output Current: 15.7A
Max. Output Current: 17.2A
Max Continuous AC Passthrough: 35A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
THD: <3% (Linear load<1.5%)
EFFICIENCY
Max. Efficiency: 97.6%
MPPT Efficiency: 97.0%
Operating Temperature: -45 ~ 60°C, >45°C Derating
Protection Degree: IP65
Size: 330 x 238 x 433mm
Net Weight: 11.4kg
In the Box:
1 X SunSynk ECCO 3.6kW (SG04) Hybrid Inverter,
1 X SunSynk ECCO 3.6kW (SG04) Hybrid Inverter User’s Manual.
