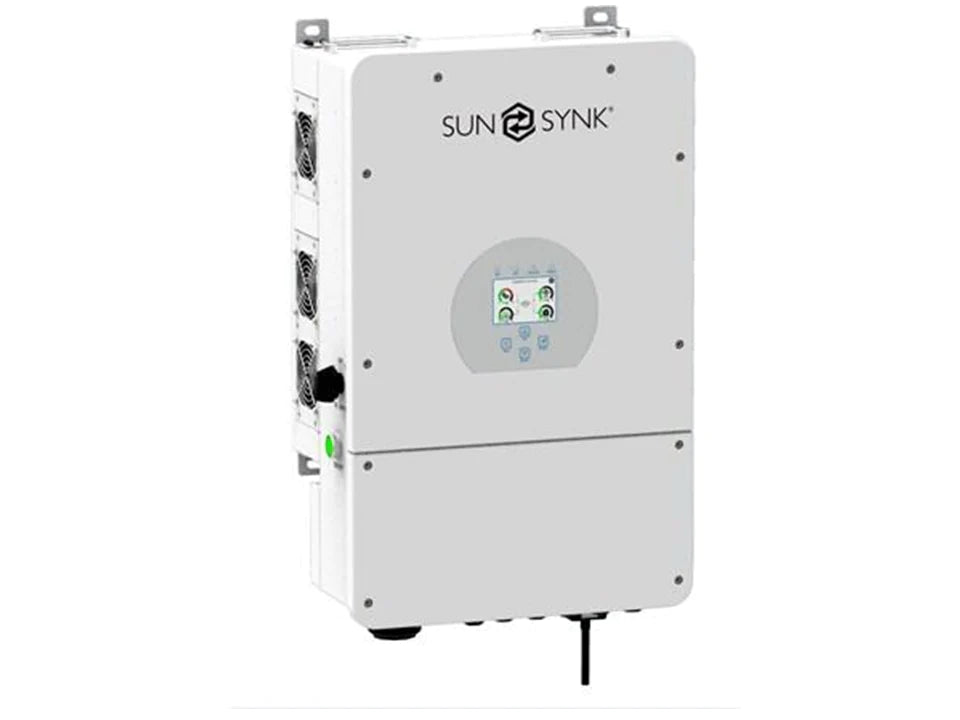

EMPOWER YOUR ENERGY INDEPENDENCE WITH SUNSYNK ECCO 8.0KW HYBRID INVERTER
Take control of your electricity costs by harnessing power from diverse sources—solar panels, batteries, the national electricity grid, a generator, or a wind turbine, all seamlessly managed by the Sunsynk ECCO 8.0kW Hybrid Inverter. Tailored for both home and business use, this inverter is not just a solution; it’s a scalable power hub that grows with your needs.
Start with UPS backup power (with batteries and inverter only) and add panels later;
Start with Grid-tied (with panels and inverter only) and add batteries later;
Install a complete Hybrid system including batteries and solar panels which can be expanded; or
Go totally off the grid with a completely independent system.
Features:
The Sunsynk ECCO 8.0kW Hybrid Inverter stands out for its simultaneous charging and generating capability. Connect up to 10,400W of PV to a single unit, enabling the export of 8.0kW while utilizing surplus energy to charge batteries—effectively generating and storing power at the same time.
Multiple Operating Modes: Grid-tie only, Hybrid, Off-grid, Battery only, AC couple – For addition of PV input to the existed grid-tie solar systems.
Additional Features: Dual MPPT design, 5-year warranty as standard, IP65 rated, Anti-islanding protection, Fully programmable power export, Automatic switching from Grid-Tied to Off-Grid mode, Up to 16 units with the same firmware can be paralleled, Comes with the Wi-Fi logger and CT.
Compatibility with Batteries: The Sunsynk ECCO 8.0kW Hybrid Inverter seamlessly integrates with a variety of battery systems, such as Sunsynk CATL 5.12-25.6kWh, PYLONTECH Force-L2 Low Voltage 7.1-14.2kWh, US2000С 2.4-38.4kWh, US3000С 3.55-56.8kWh, US5000 4.8-76.8kWh.
Integration with Octopus Agile: Integrated with Octopus Agile, the Sunsynk ECCO 8.0kW Hybrid Inverter allows you to monitor and optimize your charge and discharge figures, aligning with the cheapest rates. The Sunsynk App, available on the Apple App Store and Google Play Store, gives you complete control over your inverter.
Fast and Reliable Delivery: Experience swift 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Elevate your energy game with Sunsynk ECCO 8.0kW Hybrid Inverter—your pathway to sustainable power independence.
Detailed specifications:
Model: SUN-8.8K-SG01LP1-EU
BATTERY
Battery Type: Lithium-Ion / AGM Lead-acid
Battery Voltage: 40-60V
Max. Charge/Discharge Current: 190A
Battery Discharge Power: 8000W
INPUT PV
Max. Input Power: 10,400W
PV Input Voltage: 370V (125V~500V)
MPPT Input Voltage: 150V ~ 425V
PV Input Current: 26A/26A
Max. Short-circuit Current: 44A/44A
No. of Independent MPP Trackers: 2
No. of Strings Per MPPT: 1+1
AC OUTPUT
Rated AC Output: 8800VA
Max. AC Power: 8800W
Peak Power (Off-grid): 2 times of rated power, 10sec
Rated Output Current: 36.4A/34.8A
Max. Output Current: 40A/38.3A
Max Continuous AC Passthrough: 50A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
EFFICIENCY
Max. Efficiency: 97.6%
Operating Temperature: -45 ~ 60°C, >45°C Derating
Protection Degree: IP65
Size: 446 x 233 x 708mm
Net Weight: 25kg
In the Box:
1 X SunSynk ECCO 8.0kW Hybrid Inverter,
1 X SunSynk ECCO 8.0kW Hybrid Inverter User’s Manual.
