CHARGE AHEAD WITH INTELLIGENCE: ZAPPI ECO-SMART 7KW EV CHARGER
The Zappi Eco-smart Charger is the smartest home charger available today. It charges your car using solar, wind or grid. You can monitor and schedule your charging sessions easily through the smartphone app. Compatible with any Type 2 electric vehicle, the Zappi ensures efficient and eco-friendly charging.
The Zappi Eco-smart 7kW EV Charger includes:

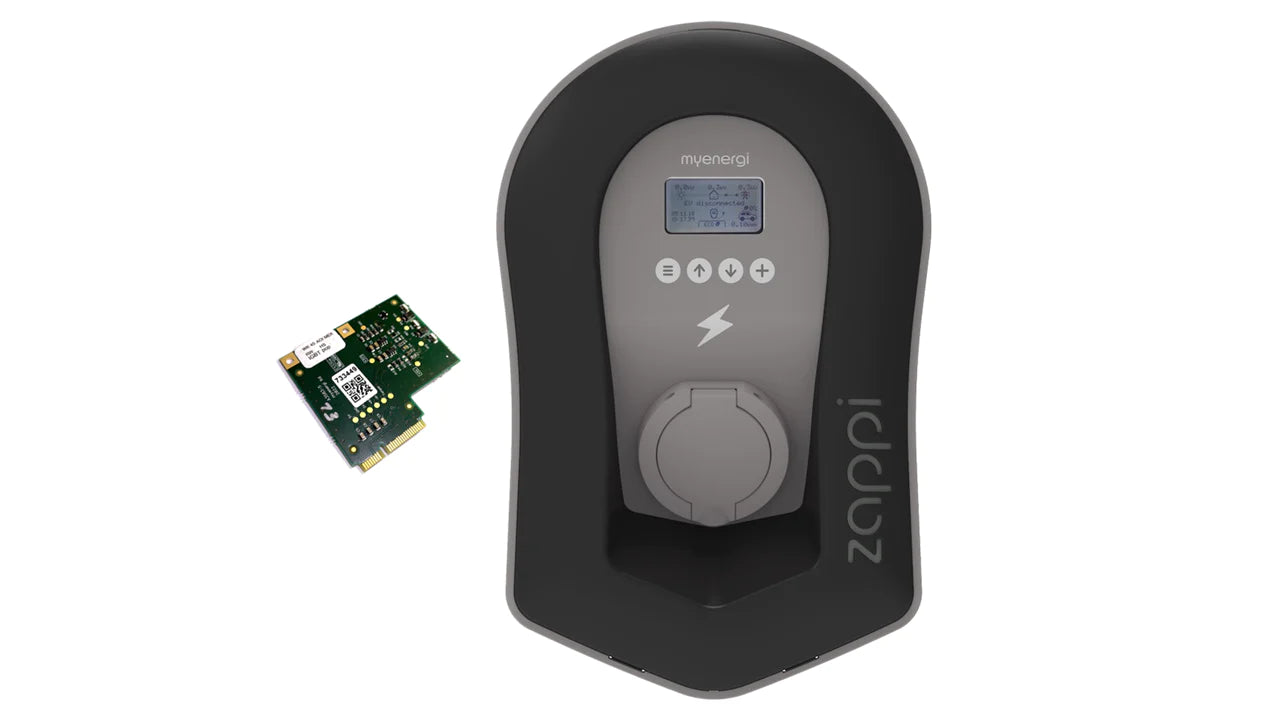

Zappi Eco-smart 7kW 1PH Type 2 Untethered Black EV Charger, and
myEnergi Retrofit Tamper Kit included to be compliant with UK Electric Vehicle (Smart Charge Points) Regulations.
Key Features:
Flexible Charging: Choose power from solar or wind generation to enhance your EV’s green credentials. The universal socket ensures compatibility with every EV.
Three Charging Modes:
Eco: Balances green energy and grid power to minimise the latter.
Eco+: Adapts charge power based on home power consumption, pausing when grid power is high and resuming with surplus free power.
Fast: Charges the vehicle at maximum power for swift charging.
Built-in RCD Protection and Grid Sensors: Ensures safety with protection against electrical faults and provides accurate energy consumption measurements.
Zappi App: Access and control your charger remotely, set timers for off-peak charging.
3-Year Warranty: Peace of mind with a 3-year manufacturer’s warranty.
Prompt Delivery: 2-3 working days’ delivery within the UK (longer for Highlands, islands, and Northern Ireland).
Elevate your EV charging experience with the Zappi’s intelligence and adaptability.
Detailed specifications:
Design and Manufacturing: UK
Rated Power: 7kW (Single Phase)
Rated Supply Voltage: 230V AC Single Phase
Supply Frequency: 50Hz
Charging Current: 6A to 32Amax (Variable)
Standby Power Consumption: 3W
Integral Protection: 6mA DC residual current protection (RDC-DD in accordance with EN 62955)
Economy Tariff Sense: Input 3.3 – 230Vrms AC Sensing (4.0kV Isolated)
Volt Free Contact (24Vdc Supplied from the Zappi)
Wireless Interface: 868/915 MHz (Proprietary Protocol) for Wireless Sensor and Remote Monitoring Options
WiFi Connectivity: 2.4GHz 802.11BGN Connection up to 150 Mbps
Grid Current Sensor: 100A max. Primary Current, 16mm max, Cable Diameter
Cable Entry: Rear, Bottom or Side
Enclosure Dimensions: 439 x 282 x 122mm
Protection Degree: IP65 (Weatherproof)
Enclosure Material: PC/ASA (Batch dependant)
Operating Temperature: -25 °C to +40 °C
Circuit Breaker: 32A Curve B
Earthing Arrangement: Built-in RCD protection and earth fault detection – no earth rod required
Charging Profile: 3 Charging Modes: ECO, ECO + and FAST. ECO settings use solar or wind energy integrated with grid power. In FAST mode Zappi operates like any other mains powered EV charger.
Connector Type: Type 2 Tethered Cable (6.5m) or Type 2 Socket with Locking System
Mounting location: Indoor or Outdoor (Permanent Mounting)
In the Box:
1 X Zappi Eco-smart Unit Single Phase EV Charge Point 7kW Untethered Black,
1 X myEnergi Retrofit Tamper Kit,
1 X CT Clamp,
1 X Mounting template,
1 x Mounting Kit (for a brick wall) including
4 X 50mm Pozi screws,
4 X Wall mounting plug,
4 X Sealing washer
Frequently Asked Questions:
What is a Type 2 EV Charger?
The main difference between Type 1 and Type 2 EV chargers is the connector design. Type 1 connectors have a five-pin, circular design, whereas Type 2 connectors have seven pins.
When is the myEnergi Retrofit Tamper Kit needed?
The myEnergi Tamper Retrofit Kit is for Zappis with an ‘H’ in their model number. If your Zappi does not have built-in tamper detection, you need this kit for installations in England, Scotland, or Wales from 30th December 2022 to comply with smart charging regulations.
What is Zappi Type 2?
Zappi Type 2 is an EV charger that can also use 100% free energy from solar PV or wind generation. It offers both 1-phase and 3-phase options, with the latter including three CT clamps.
Is a tethered EV charger more expensive than untethered?
Tethered chargers generally cost more upfront because the cable is included. Untethered chargers are cheaper initially, but you might need to buy a cable separately. Zappi chargers are priced the same whether tethered or untethered.
Is a tethered EV charger more secure?
Yes, tethered chargers are more secure as the cable is permanently attached, reducing the risk of theft. Untethered chargers with detachable cables are more prone to theft but often include security features like pin protection or cable locking.
Is the Zappi Type 2 compatible with my EV model?
The Zappi Type 2 is compatible with all plug-in hybrid and electric vehicles using a Type 1 or Type 2 connector. It supports charging speeds from 2.3 kW up to 22 kW, depending on your EV’s capability.
How does dynamic load balancing work and how can it save me money on my electricity bills?
Dynamic load balancing adjusts the charging speed based on your home’s electricity usage. By using excess energy from solar panels or off-peak tariffs, the Zappi Type 2 charges your EV more efficiently, reducing electricity bills and charging more from sustainable energy sources.
Can I control and monitor the Zappi Type 2 remotely using Wi-Fi?
Yes, the Zappi Type 2 has Wi-Fi and a mobile app, allowing you to monitor and control charging remotely. The app lets you set schedules, view history, and track energy usage and cost. It also works with Amazon Alexa and Google Assistant.
How easy is it to install the Zappi Type 2 at home?
The Zappi Type 2 is easy to install at home by a qualified electrician or solar expert. Its adjustable cable holder and compact, wall-mounted design make it suitable for tight spaces. Installation usually takes 4-6 hours.
Does the Zappi Type 2 support fast charging?
Yes, the Zappi Type 2 supports fast charging up to 7kW for single-phase and 22kW for three-phase, charging an EV up to three times faster than a standard 3-pin plug. It also has dynamic load balancing to ensure efficient charging without overloading your home’s electrical supply.
What is the maximum charging speed of the Zappi Type 2?
The Zappi Type 2 can charge at a maximum rate of 7kW single-phase or 22kW three-phase, providing fast and efficient charging.
Does the Zappi Type 2 support solar panel integration?
Yes, the Zappi Type 2 can integrate with solar panels, allowing you to charge your EV using renewable energy. It also has smart charging modes to maximise solar energy usage and minimise reliance on grid electricity.
How can I switch between the different charging modes (ECO, ECO+, and FAST)?
Press and hold the button on the front of the unit for three seconds to cycle through ECO, ECO+, and FAST modes. Release the button when the desired mode is reached. The selected mode will be remembered for future sessions but can be changed at any time.
Can the Zappi Type 2 be used in commercial settings, such as for fleet charging?
Yes, the Zappi Type 2 is suitable for commercial settings like fleet depots and company car parks. It can handle multiple EVs and integrate with energy management systems for load balancing and optimised energy usage.
