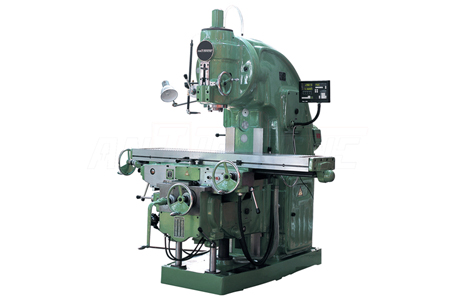

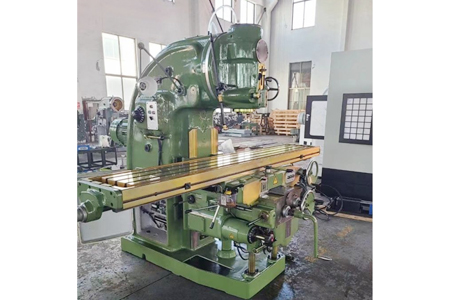

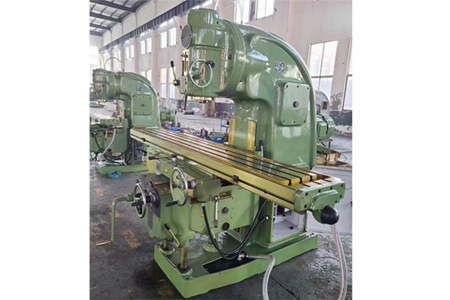

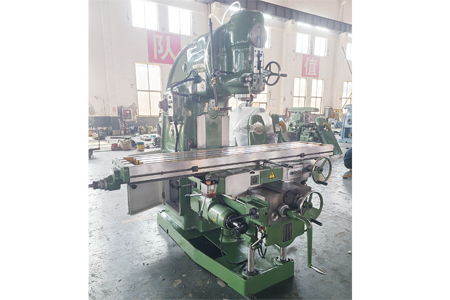

Universal Vertical Lifting Table Milling Machine X53T
Table size : 2000×400 mm
Max. load of table : 800kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : [email protected]
(your request will be responsed within 1 hour.) , Technical Parameter :
Technical SPEC| Model Unit X53T
Table size mm 2000×400
T-type slot numbers / width /space mm 3-18-90
Max. load of table kg 800
Longitudinal travel (manual/auto) mm 1180/1150
Transverse travel(manual/auto) mm 450/440
Vertical travel (manual/auto) mm 450/430
Cutting feed speed mm/min x:19-950 y:12.6-634 z:6.3-317
Rapid feed speed mm/min x:2300 y:1540 z:770
Distance between spindle nose and table surface mm 70/500
The distance from the vertical rail surface of the bed to the centerline of the workbench mm 215-600
Spindle speed step (steps) 18
Spindle taper hole ISO7:24 NO.50
Spindle speed range mm/min 31.5-1600
Spindle motor power KW 11
Feed motor power KW 3
Overall dimensions mm 2556x2659x2498
Machine weight Kg 4300
