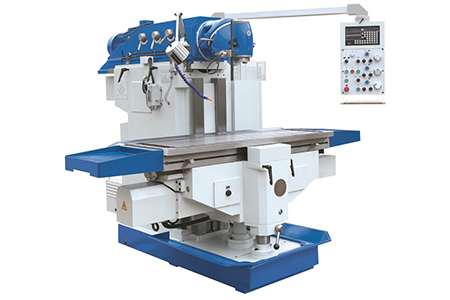

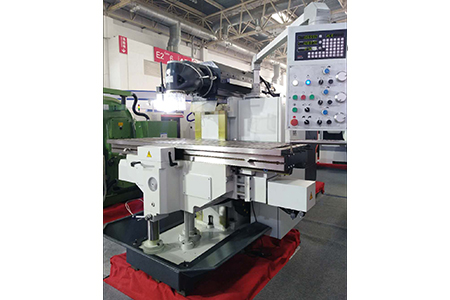

X5746 X5750 X5750A Universal Ram Milling Machine
Table size (WxL) : 2000x500mm
Max. load of table : 1800kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : [email protected]
(your request will be responsed within 1 hour.) , Technical Parameter :
Items X5746 X5750 X5750A
Working area
Table size 1235x460mm 1600x500mm 2000x500mm
T-slot (width x No. x pitch) 18mmx5x80mm
Max. load of table 800kg 1800kg
Distance from spindle nose to table surface 58-508mm 50-550mm
Distance from spindle center line to column 20-670mm 45-745mm
Travel
Longitudinal travel of X axis 900mm 1200mm 1400mm
Cross travel of Y axis 650mm 700mm 700mm
Vertical travel of Z axis 450mm 500mm 500mm
Spindle
Swivel angle of milling head 360° 360° 360°
Spindle taper ISO40 ISO50 ISO50
Vertical spindle speed /step 30-2050rpm
Vertical spindle speed step 27 steps
Main motor power 5.5kW 7.5kW
Feed
Feed speed and step of X/Y axis 10-1000mm/min 10-1000mm/min 10-1000mm/min
Feed speed and step of Z axis 6-640mm/min 5-500mm/min 5-500mm/min
Rapid traverse of X/Y axis 2200mm/min
Rapid traverse of Z axis 1100 mm/min
AC servo motor torque of X/Y/Z axis X/Y:18Nm
Z:27Nm
Others
Overall dimension 2527x2035x1990mm 2625x2460x2080mm 2625x2860x2080mm
Net weight 3600kg 4200kg 4500kg
