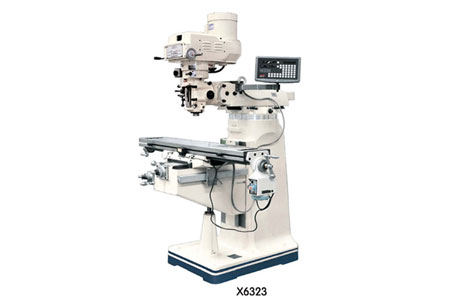

X6323A X6323B Universal Turret Milling Machine

X6323A X6323B Universal Turret Milling Machine

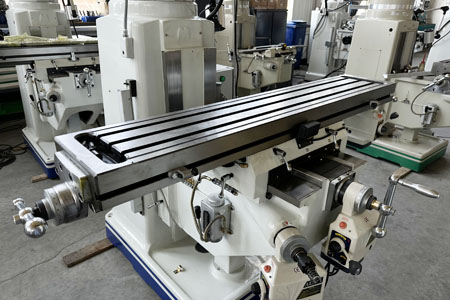

Table size

230mm x 1067mm (9″x 42″)

230mm x 1246mm (9″x 49″)

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : [email protected]
(your request will be responsed within 1 hour.) , Technical Parameter :

Item /Model Unit X6323A X6323B
Table size mm/” 230×1067(9”x42”)      230×1246(9”x49”)
Long travel mm 650 Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 850
Cross travel mm 305
Vertical travel mm 350
T-slot No.and size mm 3×16
Ram Travel mm 315
Distance from spindle nose to table surface mm 0~350
Spindle hole taper – Standard :R8  Optional :ISO 30/ISO40
Spindle travel mm 127
Spindle Speed rpm Standard:shift grade 50HZ66-4540 60HZ：80-5440
rpm Optional :variable 60-4200
Auto.quill feed mm Three steps:

0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution

Spindle motor KW/HP 2.25KW/3HP
Head swivel ° 90°
Head tilting ° 45°
Dimension

of package

One miller per case mm 1400x1476x2030
Two miller per case mm 1450x1570x2080
Three miller per case mm 1450x2180x2080
G.W/set KG 1000 1060
