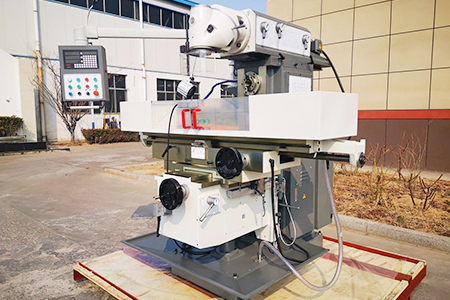

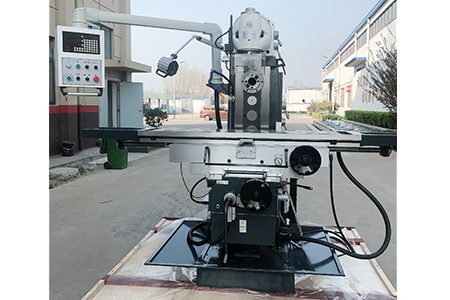

X6436 Series Heavy Duty Universal Swivel Head Milling Machine
Table size : 1600x360mm
Max. load of table : 350kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : [email protected]
(your request will be responsed within 1 hour.) , Technical Parameter :
Items X6436 X6436C X6436CLW
Working area
Worktable size (L×W) 1325x360mm 1325x360mm 1600x360mm
T slot (Width x No. x pitch) 18x3x80mm
Max. load of table 350kg

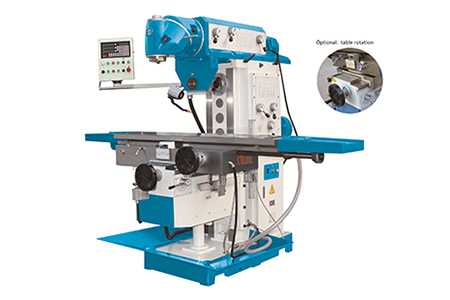

±45°table rotation optional
Distance from horizontal spindle center to worktable surface 0-450mm
Distance from spindle nose to table surface 175-625mm
Travels
Worktable longitudinal travel (X) 750mm 1100mm 1300mm
Worktable cross travel (Y) 320mm
Worktable vertical travel (Z) 450mm
Ram travel 550mm
Spindle
Horizontal spindle speed 12 steps;
60-1800rpm
Spindle taper(Horizontal) 7:24, ISO50
Motor power(Horizontal) 5.5kW
Universal milling head spindle speed 12 steps;
60-1750rpm
Spindle taper(Universal milling head) 7:24, ISO50
Universal milling head swivel angel ±360°
Motor power (Universal milling head) 4kW
Feed
Rapid feed (X/Y/Z) 1200/800/600mm/min
Feed range (X) 30-750mm/min
Feed range (Y) 20-500mm/min
Feed range (Z) 15-375mm/min
Servo motor torque 15Nm
Others
Machine size (L×W×H) 1800x2100x2000mm 2245x2100x2000mm 2520x2100x2000mm
Net weight 2685kg 2750kg 2800kg
