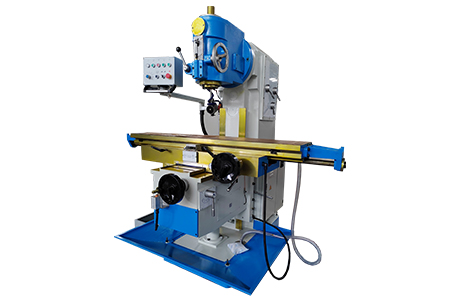

XL5036CL Vertical Milling Machine
Worktable size (L×W) : 1600x360mm
T slot (Width x No. x pitch) : 18x3x80mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : [email protected]
(your request will be responsed within 1 hour.) , Technical Parameter :
Specifications XL5036CL
Working area
Worktable size (L×W) 1600x360mm
T slot (Width x No. x pitch) 18x3x80mm
Distance between spindle nose and table 50-500mm
Distance between spindle axis and column guideway 378mm
Travels
Worktable longitudinal travel (X) 1300mm
Worktable cross travel (Y) 320mm
Worktable vertical travel (Z) 450mm
Spindle
Spindle speed 12 steps;
50-1475rpm
Spindle taper 7:24, ISO50
Motor power 5.5kW
Feed
Table Rapid feed (X/Y/Z) 1200/800/600mm
Torque of X/Y/Z axis AC servo motor 10Nm
Max. swivel angle of vertical milling head ±30°
Others
Machine size (L×W×H) 2520*2100*2150mm
Net weight 2900kg
